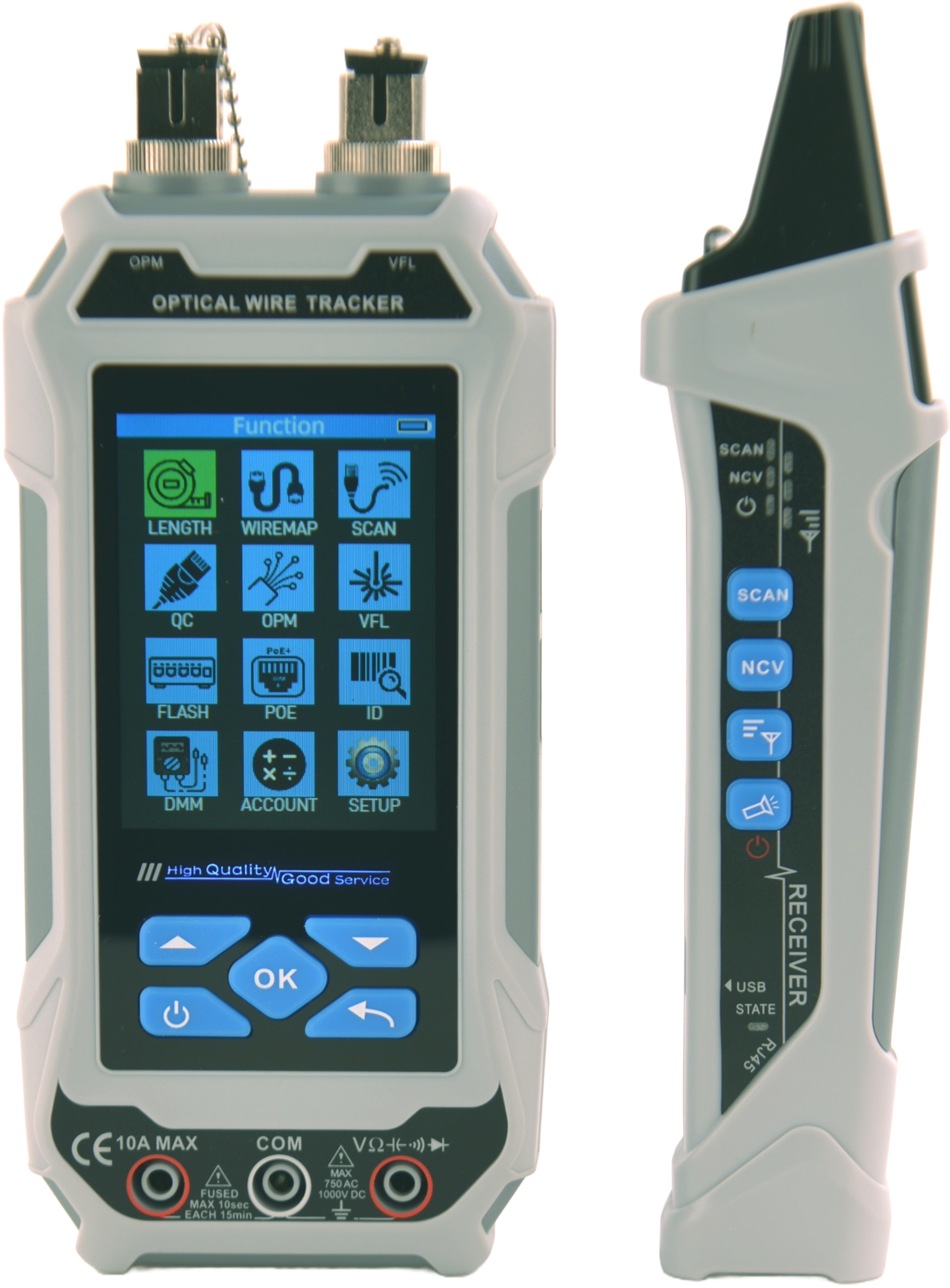

WT72A/B/C - Cable Length & Optical Power Meters

Features:

  • Multi-functions tester - with 11 built-in functions;
  • Cable length measurement up to 600m;
  • Cable analyzing functions, including checking open, short and split pair;
  • Also able to check the crystal head crimping status;
  • Built-in optical power meters which have range from 6dBm to -70dBm;
  • Built-in red laser beam output function for visual fault location;
  • The laser transmission distance is about 10Km;
  • The digitialized cable tracing mode provide a noise free tracing environment;
  • With cost calculation help users to keep up to length records and calculate the cable costs;
  • The product also have PoE test, port blink test
  • Environmental friendly design by using the rechargeable battery;
  • The dot matrix display provide an user friendly interface;
  • With 4 languages interface;
  • WT72A and WT72C have built-in 60,000 counts multimeter which can minimize the number of equipments needed.

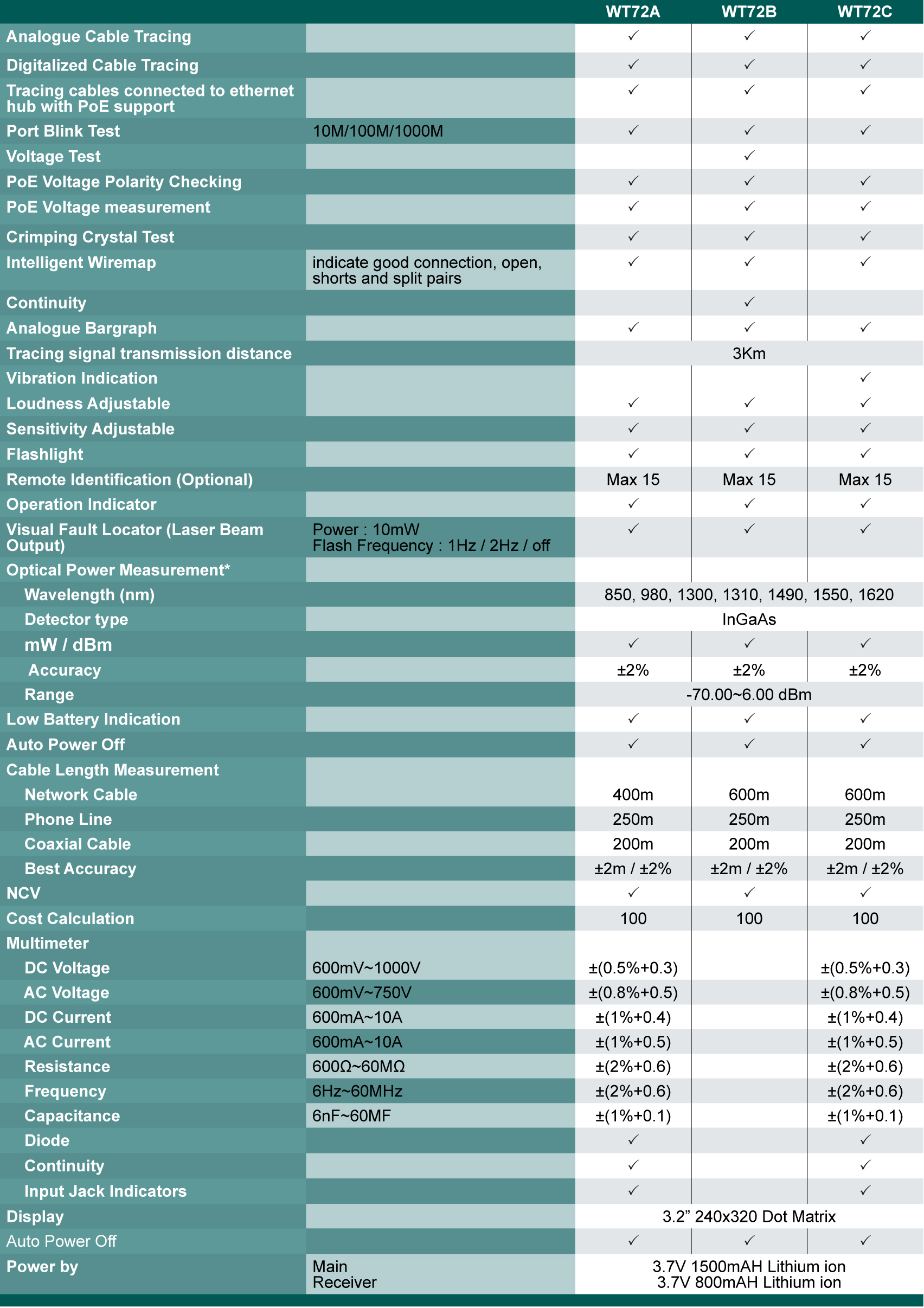

Specification:

* All information provided are subject to change without prior notice.
