Features:
- With Intuitive Operation by displaying all results on one screen;
- Network (RJ45) / Phone (RJ11) Cable Connection Test;
- Able to measure PoE and battery Voltage;
- All test results are displayed on the screen for easy reading;
- Able to test UTP and STP cables;
- Suitable for CAT 3, 4, 5, 5e, 6, 6A, 7, 7A, 8/8.1 and 8.2 cable;
- Identify / Trace the target wire among plenty of wires (suitable for network cable, phone line and coaxial line);
- Short-circuit, breaking circuit, open circuit and crossing checking;
- Auto scan mode rapidly test corresponding LAN cable connectivity (1,2,3,4,5,6,7,8) to judge wrong connection or short/open circuit;
- Tracing cables connected to ethernet hub with POE support;
- Have Remote Identification Function;
- Intelligent wiremap (Shorts, Split Pairs, and Breakpoint Checking);
- Audio and visual indication;
- With digitalized signal to minimize the noise;
- Sound level adjustable to suit for working in different environments;
- With Non-contact Voltage Detection;
- Bright white LED flashlight for dark environments;
- Auto Power Off to save battery power;
- Trendy Look;
- Help to increase users efficiency.

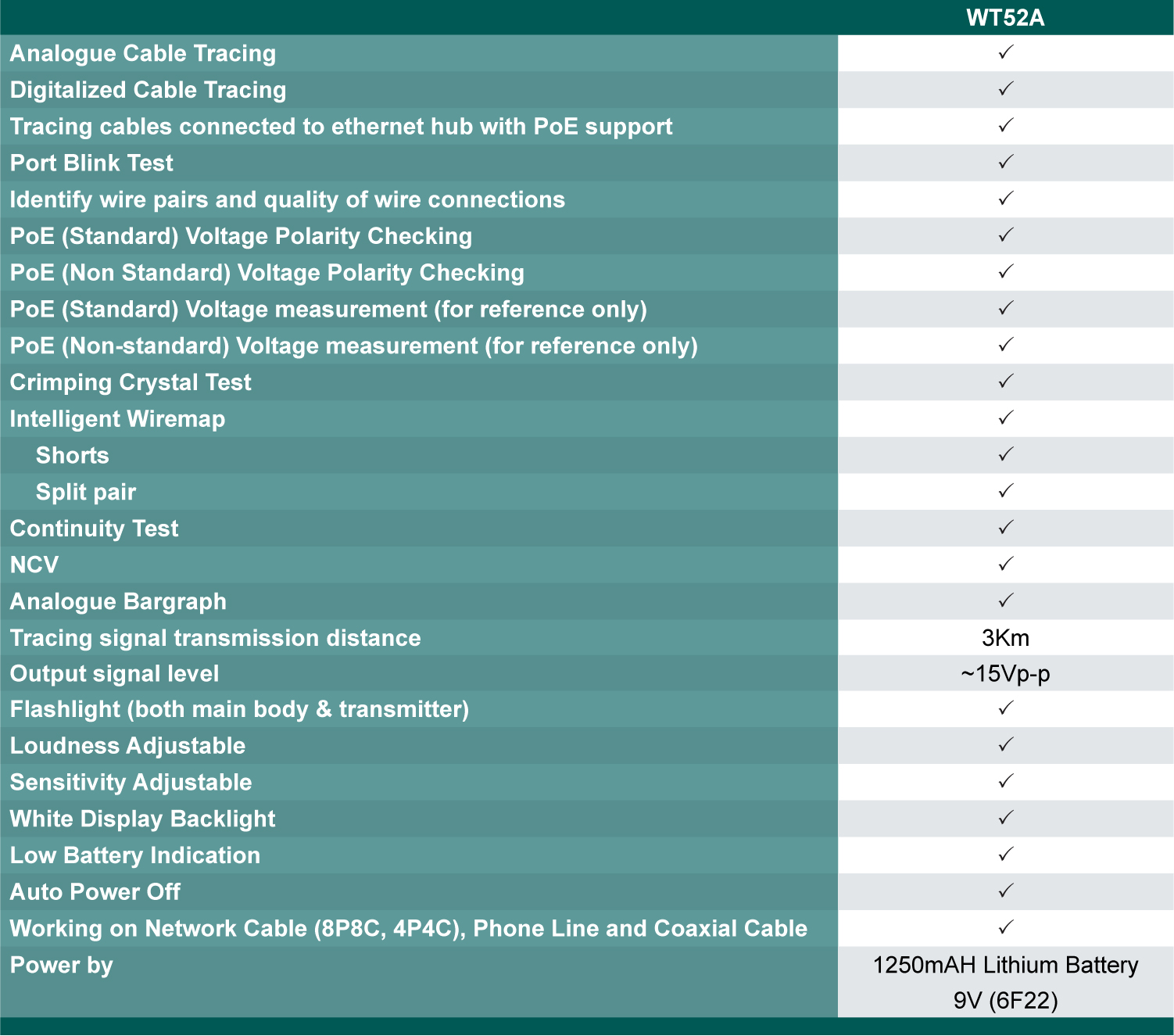

Specification:
* All information provided are subject to change without prior notice.
